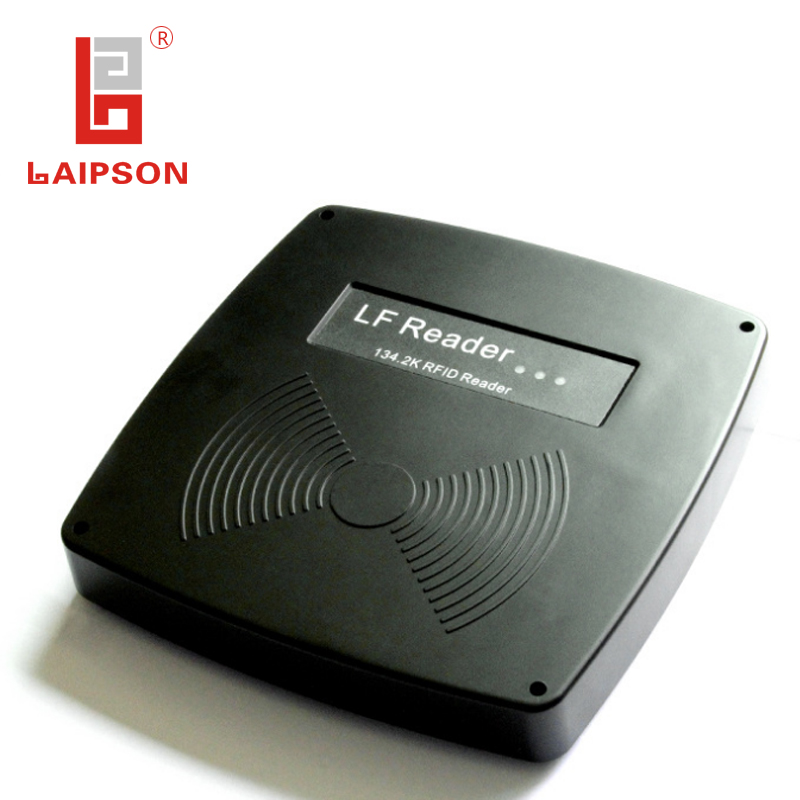

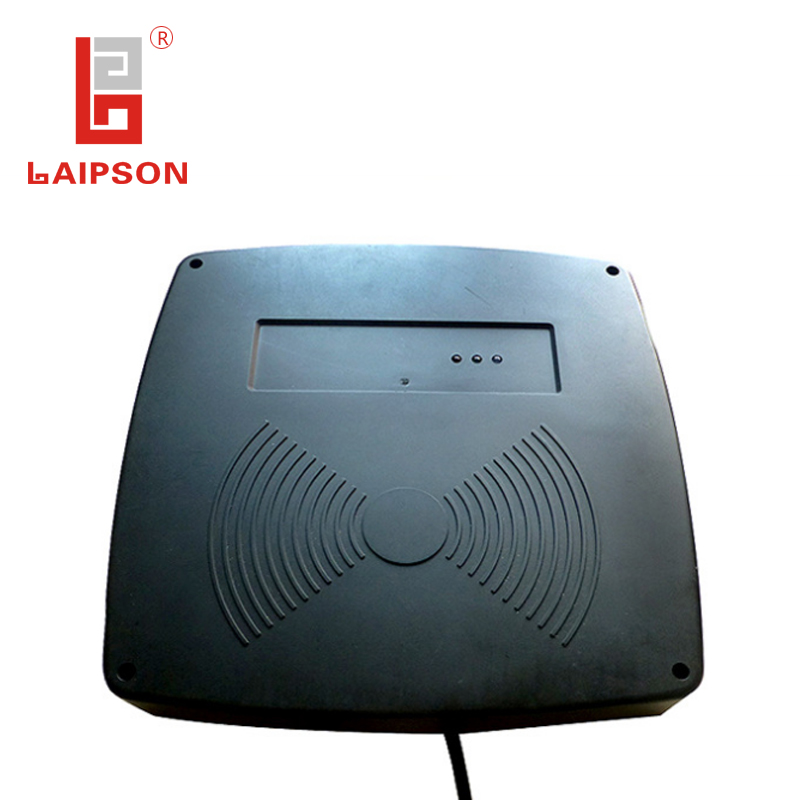

50-70CM Reading Range 134.2KHZ LF RFID Ear Tag Reader For Scan Pig
Cattle Ear Tags
FEATURES OF RFID EAR TAG READER:
1: This series of products are divided into two frequencies of
125KHz or 134.2KHz, which can be used in parking lot systems,
especially in the animal husbandry management as a channel point,
or combined with the induction electronic ear tag in the breeding
feeder. Read electronic ear tags at a distance of 40cm to 50cm. The
most stable product on the market.
2: The output methods are: RS232 or 485 output. You can choose to
read the product only once or read the code continuously.
3: Customers can choose standard products with shells, can also
choose custom coils, or use customer shells, which can personally
meet your requirements.
4: This read head is different from the ordinary card readers in
the market, and the reading distance can be used for a long time
without attenuation.
5: Application occasions: Automatic feeders, cow weighing
platforms, livestock management channel points and other fields are
unique.
Parameters of RFID EAR TAG READER:
| Product name | 50-70CM Reading Range 134.2KHZ LF RFID Ear Tag Reader For Scan Pig
Cattle Ear Tags |
| type | RFID ear tag reader |
| Model | RL10 |
| Working frequency | 134.2Khz |
Sensing distance | 50-70cm |
| Storage Temperature | -20℃~+80℃ |
Working temperature | -20℃ ~ +80℃ |
Output mode | RS232 or SY485 |
Applications | livestock management channel points, parking lot / access control,
automatic feeding device, cow weighing platform and other fields. |
| Certifications | ISO9001:2015, ISO14001, SGS, ROHS |
| Package | 1pcs/box, 20 pcs/carton |
| Lead time | 5-8 working days |
| Payment method | Western Union, T/T, VISA, MASTER CARD |
Advantages of LAIPSON fixed reader:
1: At present, the biggest problem in the medium and long distance
reading heads is the unstable quality. The user's sensing distance
is significantly reduced after a period of use or there is no
response at all after a period of use, which is inconvenient for
engineering
maintenance units and users.
2: LAIPSON fixed readers are designed with product stability,
service life, and anti-interference as the most important design
acceptance criteria. Each machine undergoes a 72-hour
high-temperature burn-in test during production to ensure each one.
The
quality of the LFCM02 fixed reader at the factory.
3: In terms of power supply, LAIPSON fixed reader uses DC-9V
instead of DC-12V, which is mainly to protect the internal
electronic
parts, to avoid the internal electronic parts working under DC-12V,
and working under DC-12V environment. Some electronic parts are
at the "critical edge". Parts are easily damaged and aged. Although
the use of DC-12V can make the sensing distance farther, the life
of
the corresponding product becomes shorter and the quality of the
product becomes unstable. FLR01 Fixed readers sacrifice a small
sensing distance, but increase the reliability of the product.
4: In terms of antistatic protection, LAIPSON fixed reader can
reach ± 4KV.
VALUE-ADDED SERVICES
● OEM/ODM Service.
* Tag mold customization with logo.
* Laser printing service: letter, number, logo, bar code, ect.
● Free sample service.
● Free ear tag pliers.
● Free testing of pulling force,friction,weather resistance,
reading distance test,etc.
● Quick response.
● Provide livestock management solutions.
